If you’re in the market for an engineering plotter, 2026 is set to bring some impressive options your way. These new models promise enhanced precision and performance, tailored specifically for architects and engineers. With innovations in print speed and media compatibility, your workflow could see significant improvements. But what should you really look for in a plotter? The answer could change how you approach your projects.
HP DesignJet T650 Large Format Plotter Printer (5HB10T)
If you’re an architect, engineer, or construction professional looking for a reliable and high-quality plotter, the HP DesignJet T650 Large Format Plotter Printer (5HB10T) is a fantastic choice. This model supports media sizes up to 36 inches wide and delivers impressive print speeds of up to 82 A1/D prints per hour. With a resolution of 2400 x 1200 dpi, you’ll achieve remarkable accuracy and vibrant colors in your designs. Plus, it features convenient connectivity options like Gigabit Ethernet and Wi-Fi, making it easy to integrate into your workflow. With efficient ink usage, this plotter is both cost-effective and eco-friendly.
Best For: Architects, engineers, construction professionals, and geographic firms seeking a reliable and high-quality large format printer.
Pros:
- High-resolution output with 2400 x 1200 dpi for exceptional detail and color accuracy.
- Fast print speeds of up to 82 A1/D prints per hour enhance productivity.
- Eco-friendly design that reduces CO2 emissions and uses significantly less ink for maintenance.
Cons:
- Weighing 101.8 pounds, it may require a dedicated space and assistance for setup.
- Limited media size support when compared to some larger models in the market.
- The initial cost may be high for small businesses or individual users.
HP DesignJet T210 Large Format Plotter Printer (8AG32T)
The HP DesignJet T210 Large Format Plotter Printer (8AG32T) is an ideal choice for architects, engineers, and construction professionals who demand precision in their technical line drawings and blueprints. With a 24-inch wide capability and support for various media sizes, it handles everything from posters to maps effortlessly. You’ll appreciate its cost-saving efficiencies, using 95% less ink for maintenance compared to competitors. Plus, with print speeds of up to 45 seconds per page, your projects move quickly. Manage printing easily from your smartphone or tablet using the HP Smart app, ensuring you stay productive and efficient.
Best For: Architects, engineers, and construction professionals who require high-quality, precise printing for technical drawings and blueprints.
Pros:
- Cost-efficient with 95% less ink used for maintenance compared to competitors.
- Fast print speeds of up to 45 seconds per page on A1/D size.
- Easy management of printing tasks through the HP Smart app from mobile devices.
Cons:
- Limited to a maximum media width of 24 inches, which may not suit all large format needs.
- Requires specific HP ink cartridges and printheads, which could be more expensive than generic alternatives.
- Initial setup and configuration may be complex for some users unfamiliar with large format printers.
HP DesignJet T630 Large Format Plotter Printer (5HB09D)
For architects, engineers, and construction professionals seeking precision in their projects, the HP DesignJet T630 Large Format Plotter Printer (5HB09D) stands out as an ideal choice. This 24-inch plotter excels in producing technical line drawings, precise renders, and detailed maps. You’ll appreciate its versatile media handling, accommodating both wide rolls and sheets with automatic switching. With robust connectivity options, including Wi-Fi and Ethernet, remote management becomes effortless. The included HP Click Software simplifies printing and supports various file types, ensuring seamless integration into your workflow. Experience enhanced productivity and quality with the HP DesignJet T630, your go-to plotting solution.
Best For: Architects, engineers, and construction professionals seeking a reliable and precise large format printing solution.
Pros:
- Versatile media handling with support for both 24-inch rolls and 13×19-inch sheets.
- Robust connectivity options including Gigabit Ethernet, USB, and Wi-Fi for flexible networking.
- User-friendly HP Click Software simplifies printing and supports multiple file types for efficient workflows.
Cons:
- Initial setup may be complex for users unfamiliar with large format printers.
- Potentially high ink costs associated with large format printing.
- Limited portability due to its size and weight, making it less suitable for mobile use.
VEVOR Wide Format Paper, 36 in x 150 ft (4 Rolls CAD Bond)
Engineers and architects seeking reliable printing solutions will appreciate the VEVOR Wide Format Paper, measuring 36 inches by 150 feet, which comes in a convenient pack of four rolls. Each roll features a 2-inch core, compatible with most standard plotter printers. Weighing 20 LB (80 g/m²), this CAD bond paper is designed for precise, continuous printing of large-scale projects. With 94% opacity, you can print on both sides without bleed-through. The pure wood pulp guarantees sharp, vibrant results, making it perfect for architectural designs, GIS maps, and promotional materials. Boost your productivity with VEVOR’s high-quality printing capabilities.
Best For: Engineers and architects in need of reliable, high-quality printing solutions for large-scale projects.
Pros:
- High-speed printing capabilities with reduced jamming and installation challenges.
- 94% opacity allows for double-sided printing without bleed-through.
- Made from pure wood pulp for sharp, vibrant results and superior color depth.
Cons:
- May not be compatible with all plotter printers, depending on the model.
- Slightly heavier weight may require adjustments for some printers.
- Limited to specific applications, primarily CAD drawings and architectural designs.
VEVOR Wide Format Paper for CAD Drawings (24 in x 150 ft, 4 Rolls)
Designed specifically for CAD professionals, VEVOR Wide Format Paper offers an impressive 24-inch width and 150-foot length, making it ideal for large-scale projects. Each roll features a 2-inch core compatible with most standard plotter printers, ensuring hassle-free installation. Weighing in at 20 LB (80 g/m²), this paper delivers high-speed printing while minimizing jamming issues. With 94% opacity, you can expect sharp, vibrant results perfect for architectural designs, GIS maps, and promotional advertising. Made from pure wood pulp, it guarantees even ink distribution, enhancing your productivity and presentation with clarity and depth that truly stands out.
Best For: CAD professionals and designers needing high-quality plotter paper for large-scale projects.
Pros:
- High-speed printing capabilities reduce waiting time for large prints.
- Achieves up to 94% opacity, making it suitable for double-sided printing.
- Made from pure wood pulp, ensuring sharp and vibrant output with excellent color depth.
Cons:
- Limited to a specific roll size of 24 inches by 150 feet, which may not suit all projects.
- The 2-inch core may not be compatible with all plotter printers.
- Requires careful handling to avoid jamming issues despite being designed to minimize them.
iDraw 2.0 T-Structure Pen Plotter XY Plotter
The iDraw 2.0 T-Structure Pen Plotter XY Plotter stands out as the perfect companion for creative minds, offering an A4 working range and a writing speed that’s twice as fast as previous models. With its advanced stepper motors, you’ll enjoy higher precision and speed, making it ideal for repeat jobs or small businesses. The open-source software supports over 100 fonts and promises lifetime updates. Plus, its colorful layer painting feature lets you explore diverse artistic expressions. User-friendly safety features like contact switches and limit switches guarantee a smooth operation, making it a must-have tool for students, teachers, and DIY enthusiasts.
Best For: The iDraw 2.0 T-Structure Pen Plotter XY Plotter is best for students, teachers, creators, and DIY enthusiasts looking to enhance their artistic projects with precision and speed.
Pros:
- Twice the writing speed compared to previous models, increasing efficiency for users.
- Open-source software with lifetime updates and support for over 100 fonts allows for customization.
- Colorful layer painting feature expands creative possibilities beyond traditional black and white art.
Cons:
- Not a printer, so it does not support word files, limiting its use for text-based projects.
- Manual adjustment may be necessary after transportation, which could be inconvenient for users.
- Higher precision may require a learning curve for those unfamiliar with plotters or similar technology.
HP DesignJet T230 Large Format Plotter Printer (5HB07T)
For professionals in architecture and engineering who need precision in their large format prints, the HP DesignJet T230 Plotter Printer (5HB07T) stands out with its impressive ability to handle both 24-inch media rolls and 13-inch by 19-inch sheets. This plotter’s versatility makes it ideal for technical drawings, blueprints, and indoor signage. With a 2-year onsite warranty, you’ll have peace of mind knowing support is just a call away. Plus, it saves costs by using 95% less ink for routine maintenance compared to competitors. Enjoy automatic printing for multi-size projects without the hassle of manual media switching!
Best For: The HP DesignJet T230 Plotter Printer is best for architects, engineers, and construction professionals seeking high-quality large format prints.
Pros:
- Versatile media handling with support for both 24-inch rolls and 13-inch by 19-inch sheets.
- Cost-effective maintenance using 95% less ink compared to competitor printers, reducing overall printing costs.
- Automatic printing capabilities for multi-size projects, streamlining workflow and saving time.
Cons:
- Initial investment cost may be higher than standard printers, impacting budget for smaller firms.
- Limited to 24-inch media, which may not meet the needs of users requiring larger formats.
- Reliance on onsite support may not appeal to users who prefer more immediate remote assistance options.
VEVOR Vinyl Cutter Plotter Machine (53″ with Signmaster Software)
With a cutting width of 49.6 inches, the VEVOR Vinyl Cutter Plotter Machine is perfect for professionals who need precision and versatility in their projects. This robust machine features a fast, low-noise stepper motor and offers cutting precision of +/-0.0004 inches. You can easily adjust the cutting pressure and speed for tailored results. The included Signmaster software is user-friendly and compatible with various Windows systems, though it’s not Mac-friendly. With a digital control panel and safety features like an emergency stop, this plotter supports a wide range of applications, making it an excellent choice for creative endeavors.
Best For: The VEVOR Vinyl Cutter Plotter Machine is best for professionals and hobbyists requiring high precision and versatility in cutting vinyl and other materials for creative projects.
Pros:
- High cutting precision of +/-0.0004 inches allows for detailed and intricate designs.
- User-friendly Signmaster software provides a straightforward interface for easy customization.
- Robust safety features such as an emergency stop ensure safe operation during use.
Cons:
- Not compatible with Mac systems, limiting accessibility for Mac users.
- Initial setup may require software installation via CD or activation code, which could be inconvenient for some users.
- Large size (53″) may require significant workspace for proper operation and material handling.
VEVOR Wide Format Paper, 24 in x 500 ft CAD Bond Rolls
Engineers and architects seeking reliable, high-quality printing solutions will appreciate the VEVOR Wide Format Paper, 24 in x 500 ft CAD Bond Rolls. Each box contains two rolls, designed with a 3-inch core compatible with most standard engineering printers. Weighing 20 LB, this paper delivers high-speed printing with reduced jamming, thanks to its machine-programmed length calculations. With 94% opacity, it guarantees clear, vibrant prints without bleed-through. Ideal for CAD drawings and GIS maps, it boosts productivity while producing sharp results. Made from pure wood pulp, it ensures even ink distribution, making your designs stand out beautifully.
Best For: Engineers and architects looking for high-quality, reliable printing solutions for their CAD drawings and designs.
Pros:
- High-speed printing capabilities with reduced jamming for increased productivity.
- 94% opacity ensures clear and vibrant prints without bleed-through for professional results.
- Compatible with most standard engineering printers due to the 3-inch core design.
Cons:
- Limited to specific applications, primarily suited for CAD and engineering-related prints.
- May not be as cost-effective for low-volume users compared to smaller paper sizes.
- Requires specific printer compatibility, which may not suit all users.

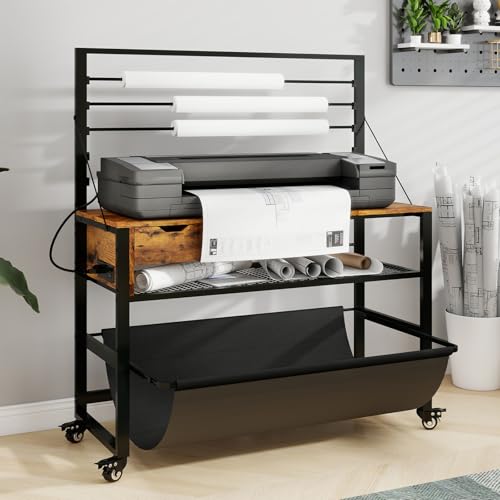

Natwind Wide Format Printer Stand with Storage
The Natwind Wide Format Printer Stand with Storage is an ideal solution for professionals seeking a robust and efficient workspace. Its heavy-duty construction features a high-quality wooden top and reinforced steel tubes, ensuring stability for your wide-format printers and plotters. You’ll appreciate the all-in-one storage with adjustable paper roll holders and a pull-out fabric pouch for easy print collection. The spacious desktop allows for various equipment, while the built-in power outlets and USB ports enhance connectivity. With 360° smooth-rolling lockable casters, you can effortlessly reposition your setup without compromising stability during printing jobs.
Best For: Professionals in need of a durable and functional workspace for wide-format printers and large equipment.
Pros:
- Heavy-duty construction ensures long-lasting stability and support for various equipment.
- All-in-one storage solutions provide convenient organization for paper rolls and printed materials.
- Mobility features with lockable casters allow for easy repositioning without sacrificing stability.
Cons:
- Size may be too large for small workspaces or home offices.
- Assembly required, which may be challenging for some users.
- Limited color options could restrict aesthetic customization for different environments.
Factors to Consider When Choosing an Engineering Plotter
When choosing an engineering plotter, you’ll want to focus on key factors that impact your work. Consider print quality and resolution, as well as media size compatibility to guarantee your projects meet professional standards. Also, think about speed, connectivity options, and software usability to enhance your efficiency and workflow.
Print Quality and Resolution
Choosing the right engineering plotter hinges considerably on print quality and resolution. You’ll want to look for models that offer high dpi, like 2400 x 1200 dpi, to guarantee detailed and accurate technical drawings. Line accuracy is equally crucial; some plotters deliver up to 31% more precision, critical for representing your designs accurately. A wider color gamut can enhance vibrancy, with some plotters boasting up to 65% more color range than standard printers, making your prints more legible and appealing. Additionally, verify that the plotter maintains consistent print quality across different media types, as you’ll often work with both large rolls and sheets. Investing in quality output is fundamental for your engineering applications.
Media Size Compatibility
Selecting an engineering plotter that meets your media size needs is vital for efficient project execution. First, consider the maximum media size the plotter supports, which can range from 24 inches to 36 inches wide for larger projects. It’s also important to choose a plotter that accommodates both roll feed and sheet feed, giving you flexibility for various printing tasks like blueprints and posters. Look for models with automatic sheet/roll switching for seamless shifts between media sizes. Confirm compatibility with standard sheet sizes, such as 13-inch by 19-inch, to broaden your printing options. Finally, check the core size compatibility of media rolls, as most standard plotters work best with either 2-inch or 3-inch cores for peak performance.
Speed and Efficiency
Speed and efficiency are paramount in engineering plotters, especially if you want to keep your projects on track. Look for high-performance models that can produce A1/D size prints in as little as 25 seconds, equating to up to 82 prints per hour. Efficient media handling features, like automatic multi-size project printing and sheet/roll switching, can drastically reduce downtime and streamline your workflow. Plus, make sure the plotter delivers high-resolution outputs at 2400 x 1200 dpi, capturing intricate details quickly without compromising quality. Don’t forget about ink usage; models that use up to 95% less ink for maintenance can enhance your overall operational efficiency, saving you time and money in the long run. Choose wisely for maximum productivity!
Connectivity Options Available
When evaluating engineering plotters, the variety of connectivity options can greatly influence your overall experience and efficiency. Consider options like Gigabit Ethernet, Hi-Speed USB, and Wi-Fi, which enhance versatility in different environments. A plotter with multiple connectivity methods allows seamless integration with devices such as computers, tablets, and smartphones, making remote management and printing easier. Look for models that support standard protocols like USB 2.0 or higher to guarantee compatibility with existing technology. Wireless connectivity, like Wi-Fi 802.11 b/g/n, lets you position the plotter flexibly within your workspace without the need for physical connections. Ensure the plotter’s connectivity capabilities fit your workflow requirements, whether for direct network connections or mobile printing solutions.
Software and Usability
A good engineering plotter makes your workflow smoother, thanks to intuitive software and usability features that simplify the printing process. The best plotters come with user-friendly software, offering tools like PDF error checking and auto-nesting capabilities to boost your efficiency. You’ll appreciate that many models support various file formats—PDF, JPEG, TIFF, and DWF—allowing you to work seamlessly with different design applications. Remote management software, such as HP Smart, lets you handle printing tasks right from your smartphone or tablet, adding much-needed convenience. Plus, open-source software compatibility can enhance your plotter’s functionality with customization options and lifetime updates. Specialized software for job submittal and poster creation makes producing complex projects easier and more efficient.
Cost of Maintenance
Choosing an engineering plotter involves more than just evaluating its features; you also need to reflect on the cost of maintenance. Some models can greatly cut maintenance costs, using up to 95% less ink for routine tasks compared to competitors. You’ll want to take into account the expenses associated with replacing printheads and ink cartridges, which can vary based on your plotter’s model and how often you use it. Keep an eye on the availability and pricing of consumables like ink and paper, as these impact your overall budget. Maintenance contracts can provide predictable costs and services, often including onsite support. Finally, eco-friendly designs may reduce maintenance expenses by using recycled materials and lowering CO2 emissions, leading to long-term savings.
Physical Dimensions and Weight
Physical dimensions and weight are essential factors in selecting the right engineering plotter for your needs. Larger plotters can take up significant workspace, so you’ll want to verify you have a dedicated area for installation. Weight plays a critical role, as heavier models tend to be more stable but can be challenging to move without help. Make certain the dimensions of the plotter align with the media sizes you plan to use for peak performance. If you have a smaller office, a compact plotter might be ideal, while larger models are better suited for high-volume projects. Finally, verify the plotter’s height and width fit comfortably within your workspace to maintain accessibility and an efficient workflow during printing tasks.
Warranty and Support Services
When evaluating engineering plotters, warranty and support services can make a significant difference in your overall experience. First, consider the warranty duration; a longer warranty offers peace of mind against malfunctions. Look for onsite and remote support, as these options can minimize downtime during technical issues. Next business day service availability is vital, especially in fast-paced environments where productivity is key. If you rely heavily on your plotter, extended warranty options can save you from unexpected repair costs. Finally, verify the warranty covers both parts and labor to protect your investment fully. By considering these factors, you can choose a plotter that not only meets your needs but also provides reliable support when you need it most.
